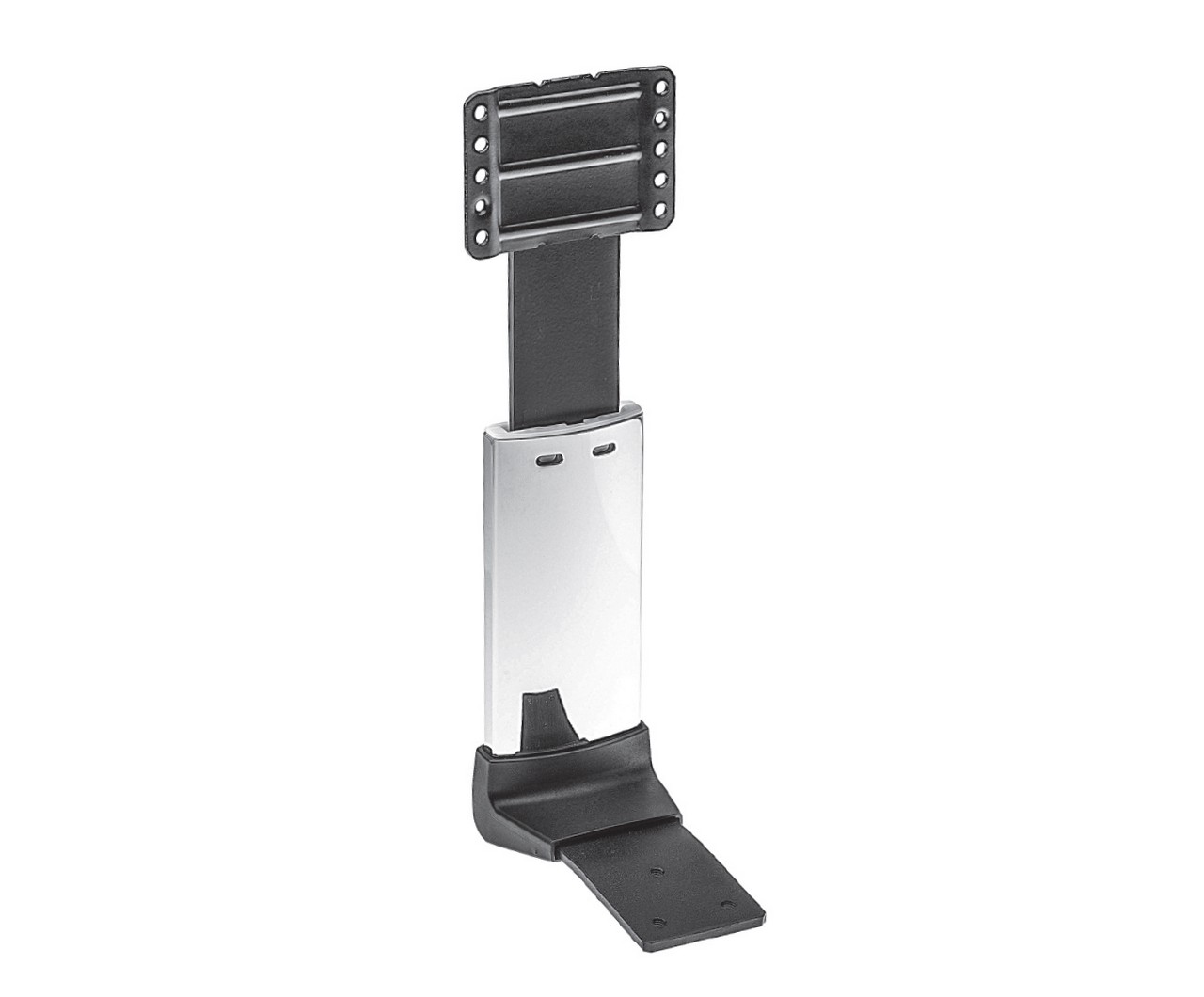

F370
BACKREST SUPPORT, HEIGHT ADJ. STEP-BY-STEP, STEEL
Functions
Height backrest adjustment Details

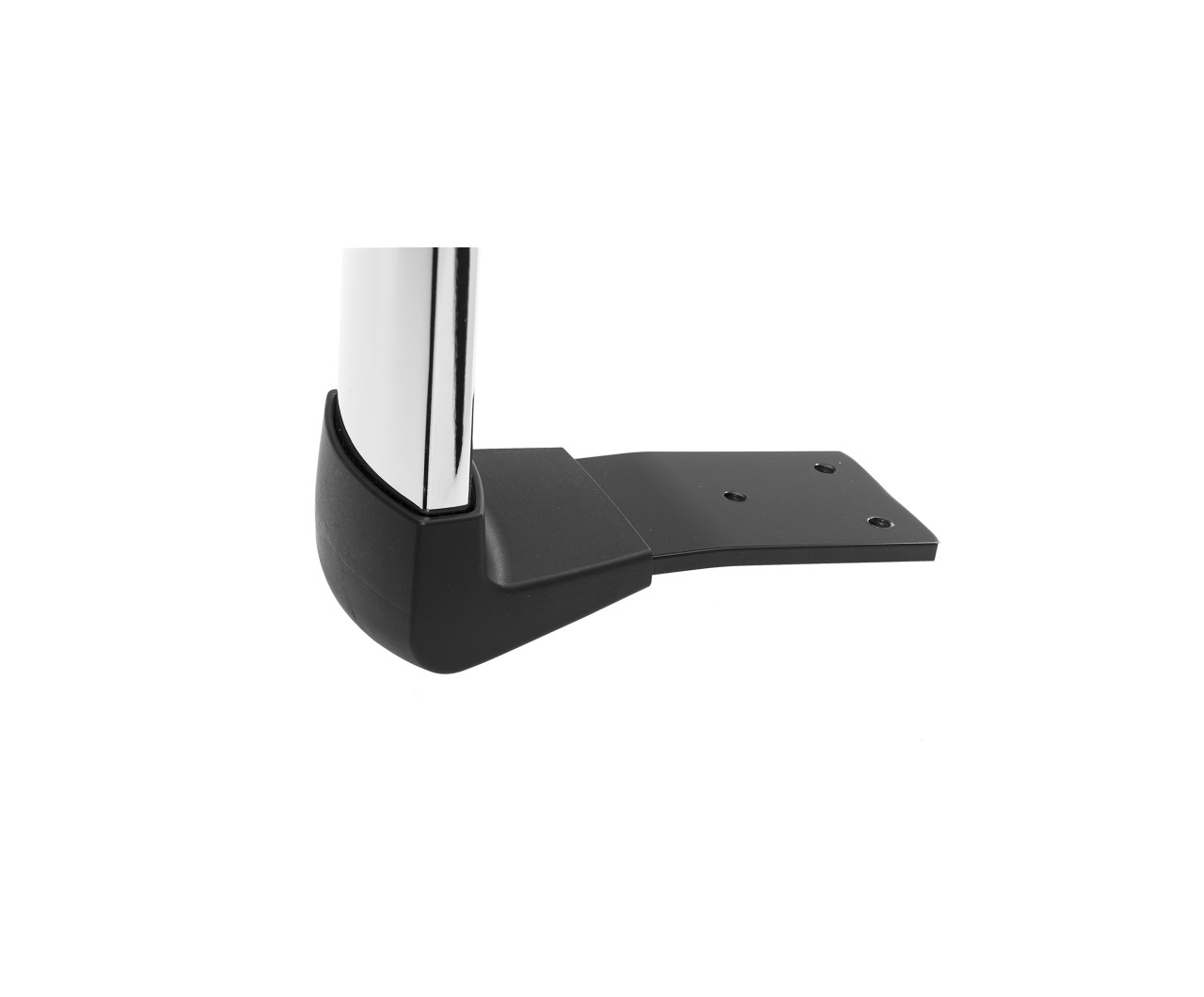

FIXING BRACKET AND COVER DETAIL
FIXING KIT WITH BRACKET, SCREWS AND COVER

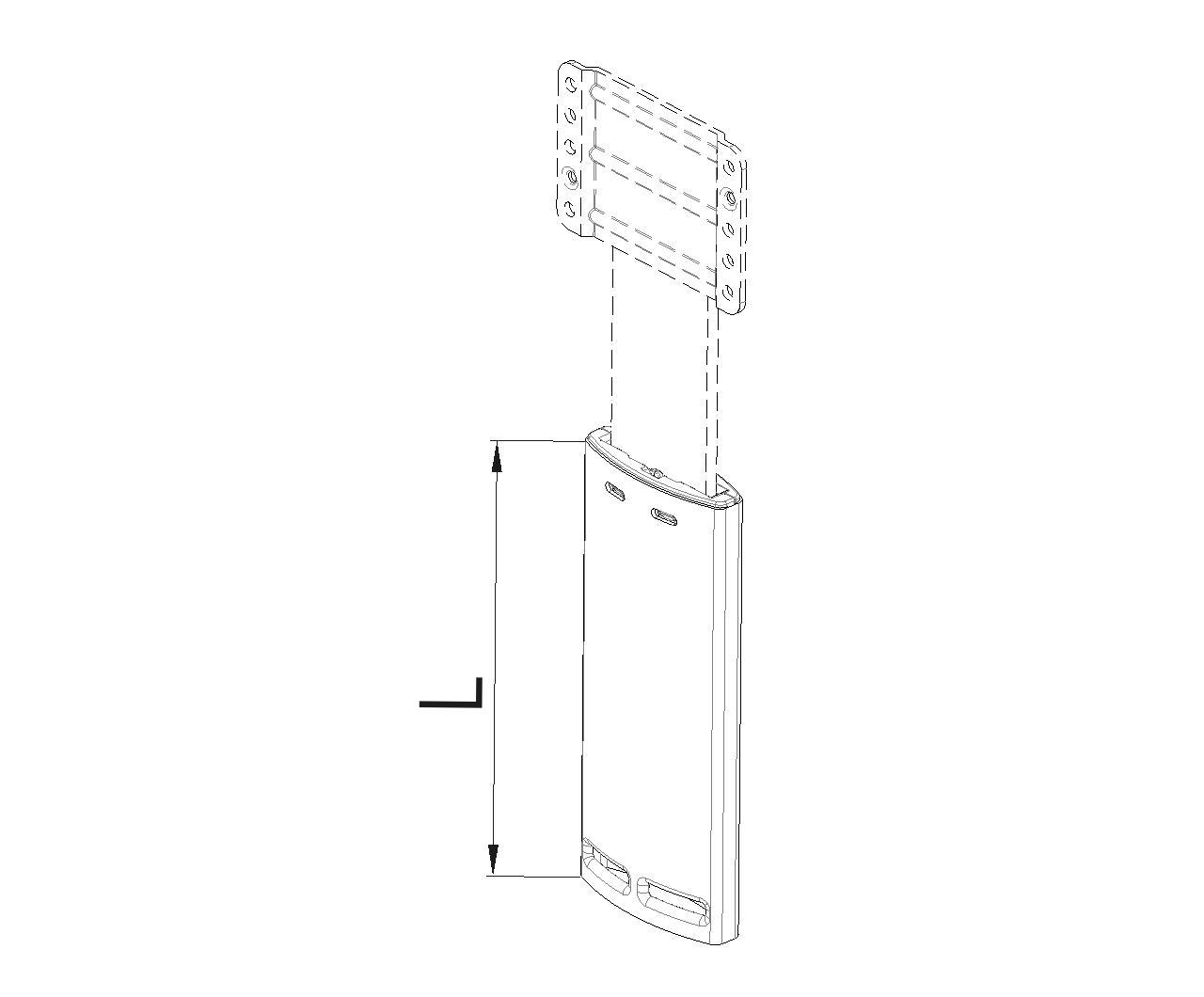

drawing
Technical features
- Type: Backrest support
- Adjustment system: Step by step
- Position adjustment: 6
- Structure: Steel
- Heigth adjustment stroke: 70 mm
- Backrest connection: 100x60
- Reference standard: ANSI-BIFMA X5.1, EN 1335-2 EN 1728
OPTIONS
- Possibility to personalize support height (L) - see drawing: yes
- Available in different color
- Mechanism connection: 3 holes 40x40, Plate, Mechanism-holes personalisation available
