F750

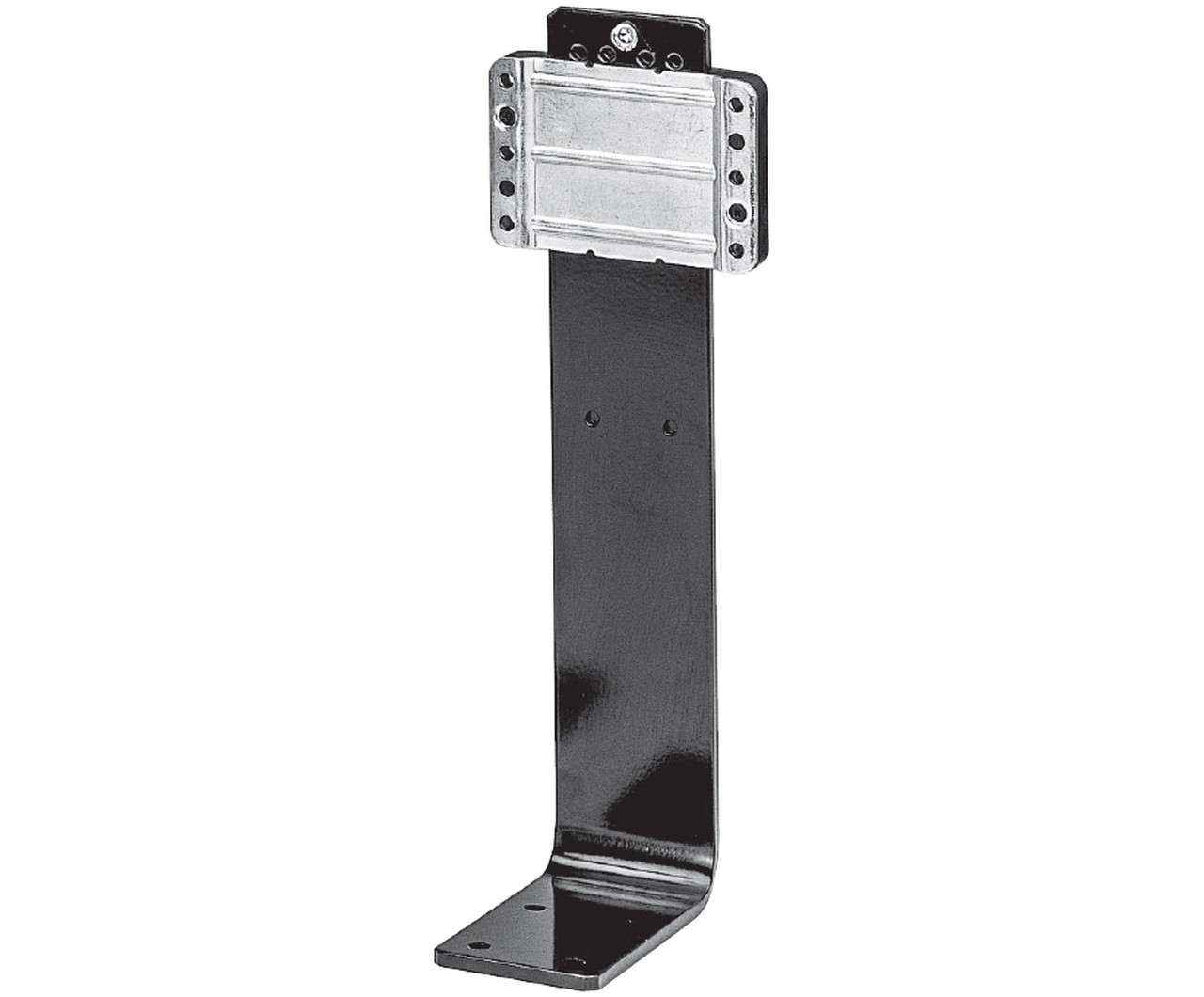

BACKREST BAR 70X6, STEEL
Functions
Height backrest adjustment Details

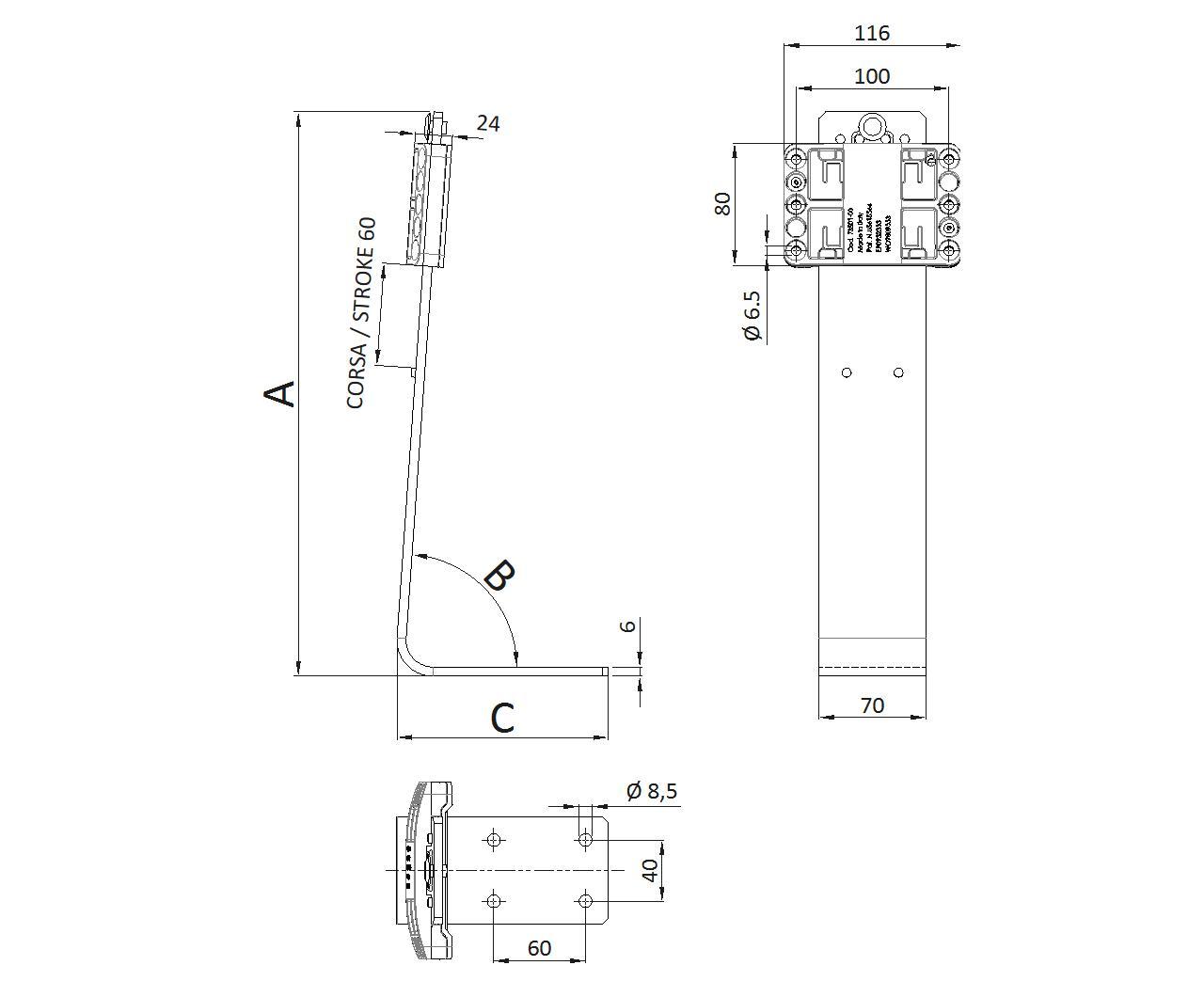

DRAWING
Technical features
- Type: Backrest bar
- Adjustment system: Up / Down
- Position adjustment: 10
- Structure: Steel
- Profile dimension: 70x6 mm
- Heigth adjustment stroke: 60 mm
- Backrest connection: 100x60
- Reference standard: ANSI-BIFMA X5.1, EN 1335-2 EN 1728
OPTIONS
- Possibility to personalize height (A), angle (B), depth (C) - see drawing
- Available in different color
- Mechanism connection: 60x40, Mechanism-holes personalisation available
